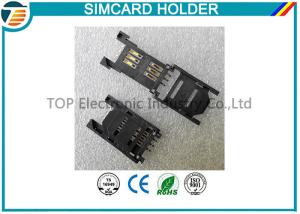

2.54MM Pitch SIM Card Holder / SAM Card Holder withandnbsp; HINGED TYPE 6 Pin TOP-SIM01-1
andnbsp;
andnbsp;
8 pin SIM card holder ,
6 pin SIM card holder with metal cover
andnbsp;
Package:
- 800pcs/ reel
- 20pcs/tube
andnbsp;
andnbsp;
Overview:
SIM card holders assembled on the PCB,are andnbsp;used for andnbsp;identification of readers/writers and Point of Sale terminals. These types of Card are sometimes referred to as SAMs (Secure Application Module) card.
andnbsp;
andnbsp;
Introduction:
landnbsp; SAM/SIM CARD READER
landnbsp; LOW PROFILE DESIGN WITH HINGED COVER
landnbsp; CARD DETECTION SWITCH
landnbsp; PUSH andamp; SLIDE LOCKING MECHANISM ASSURES HIGH RETENTION AND OPERABILITY
landnbsp; INSULATION MATERIAL:
Thermoplastic, UL 94V-0 BLACK
landnbsp; OPERATING TEMPERATURE: -40anddeg;C ~ + 85anddeg;C
landnbsp; 6 PIN or 8 PIN SURFACE MOUNT DEVICE
andnbsp;
andnbsp;
Material:
- Body: PPS UL 94V-0 Rated, color: black
- Cover: LCP UL 94V-0 Rated, color: black
- Contact: Phosphor Bronze
- Contact plating: Gold plating over nickel
On contact area, tin plating on solder tail
andnbsp;
andnbsp;
Specification:
- Current rating: 0.5 AMP Max.
- Dielectric withstanding voltage:500v AC R.M.S For one minute
- Insulation resistance: 1000 MandOmega; Min. AT 500V AC
- Contact resistance 30 mandOmega; Max.
- Operation temperature: -25anddeg;C to +85 anddeg;C
- Durability: 5000 Cycles
- Processing temp: 240anddeg;C for 30~60 seconds Max.
andnbsp;
Keyandnbsp;Features:
| Packagingandnbsp;andnbsp; | Tape andamp; Reel (TR) |
| Standard Package | 800 pcs |
| Card Type | SIM Card |
| Number of Positions | 6 |
| Connector Type | Connector and Ejector |
| Insertion, Removal Method | Hinged Lid |
| Ejector Side | - |
| Mounting Type | Surface Mount, Right Angle |
| Pitch | 2.54mm |
| Features | Board Guide |
| Height Above Board | 0.098andquot; (2.50mm) |
| Mounting Feature | Normal, Standard - Top |
| Contact Finish | Gold |
| Contact Finish Thickness | 31.5andmicro;in (0.80andmicro;m) |
andnbsp;
andnbsp;
Application:
landnbsp; GSM APPLICATIONS
landnbsp; MOBILE PHONES
landnbsp; POINT OF SALE TERMINALS
landnbsp; PORTABLE DEVICES
landnbsp; PERSONAL SMART CARD DEVICES
andnbsp;
andnbsp;
andnbsp;
Drawing:
andnbsp;
andnbsp;
andnbsp;
Packing:
andnbsp;
andnbsp;
We can also supply many other types of SIM Card holders,andnbsp;with good quality and cheaper price, pleaseandnbsp;contactandnbsp;our sales team for more information.
sales@topelecind.com
skype ID: natasha.cn
andnbsp;
andnbsp;
Ourandnbsp; Offer :
---Powerful Randamp;D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
andnbsp;
FAQ
andnbsp;1. Whatand#39;s the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
andnbsp;
2. andnbsp;How about the defective rateandnbsp;?
Answer: Less than 1%.
andnbsp;andnbsp;
andnbsp;3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
andnbsp;
andnbsp;Our high quality products , competitiveandnbsp; price and professional service, be sure to meet your need for all kinds of components.andnbsp;andnbsp;andnbsp; ^_^
